Explore flagship production equipment, continuous roll forming units, and structural panel machinery manufactured with precision China supply chain standards.
In modern industrial architectural engineering, metal roofing systems serve as the critical primary envelope protecting multi-billion-dollar commercial complexes, logistics hubs, manufacturing plants, and residential developments. The precision, durability, and structural integrity of corrugated sheets, trapezoidal roof profiles, standing seam panels, and insulated sandwich roofing boards directly stem from the advanced mechanics of cold roll forming technology.
The term "China Roofing Panel Forming Machine Product & Products" encompasses a broad spectrum of automated industrial manufacturing systems designed to process galvanized steel (GI), pre-painted galvanized steel (PPGI), Galvalume (GL), pre-painted Galvalume (PPGL), aluminum coils, and composite cement-based roofing sheets. High-precision roller dies, dynamic hydraulic post-cutting mechanisms, high-speed PLC control architectures, and continuous feed systems form the technological backbone of these manufacturing lines.
Technical Information Gain Insight: Modern high-speed roofing panel roll forming systems designed in China now achieve production velocities exceeding 35 to 50 meters per minute while maintaining dimensional profile tolerance thresholds within ±0.5mm across a 12-meter continuous span. This is accomplished via computerized multi-stage roller station distribution and real-time laser feedback telemetry.
As global building codes mandate stricter weatherproofing, wind-uplift resistance, thermal insulation, and seismic structural flexibility, procurement teams must look beyond standard off-the-shelf equipment. Buyers require end-to-end engineering solutions that integrate uncoiling, precision leveling, multi-pass cold roll forming, hydraulic pressing/cutting, stack automation, and integrated quality assurance testing into a single continuous workflow.
Detailed analysis of core roofing machine taxonomy engineered for diverse industrial and structural applications.
Engineered for high-rib structural roofing sheet production. Features 18 to 26 forming stations with chrome-plated 45# forged steel rollers to prevent surface coating damage during high-pressure cold deformation.
Combines continuous roll forming with secondary hydraulic step-pressing units to create architectural step-tile profiles mimicking traditional ceramic roof tiles with superior strength and low structural weight.
Produces concealed-fastener standing seam panels (e.g., K-Span, Lock-Seam, Snap-Lock). Eliminates exposed screw penetrations, providing 100% leak-proof reliability for low-slope roofs.
Space-saving dual-level frame design integrating two distinct profile rolling die sets onto a single machine chassis. Enables plant operators to switch profiles via simple electrical directional controls.
Continuous automated lines combining top and bottom corrugated sheet roll forming with continuous polyurethane (PU/PIR) injection or Rockwool core panel insertion for thermal insulation performance.

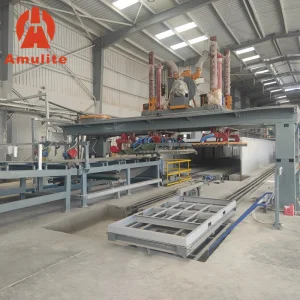

Heavy-duty non-asbestos fiber cement and synthetic corrugated roofing production lines engineered for industrial-scale agricultural, chemical plant, and anti-corrosive building applications.
| Machine Sub-Type | Raw Material Thickness | Forming Speed | Roller Station Count | Control System |
|---|---|---|---|---|
| High-Speed Trapezoidal Machine | 0.3 mm – 0.8 mm (GI / PPGI) | 25 – 45 m/min | 18 – 24 Stations | Siemens / Mitsubishi PLC + Touch Screen |
| Hydraulic Glazed Tile Machine | 0.4 mm – 0.6 mm (PPGI / Aluminium) | 10 – 18 m/min | 20 – 26 Stations | Schneider / Delta PLC with Encoder |
| Concealed Standing Seam Machine | 0.5 mm – 1.0 mm (Galvalume / Zn-Mg-Al) | 15 – 30 m/min | 16 – 22 Stations | Omron Servo Motor & Encoder Drive |
| Continuous Sandwich Panel Line | 0.4 mm – 0.8 mm (Facing Sheets) | 6 – 12 m/min | Dual Line Continuous | Integrated SCADA / Industrial Ethernet |
The global dominance of Chinese roofing panel machine manufacturers is built upon decades of industrial clustering, comprehensive raw material supply chains, advanced CNC metalworking infrastructure, and localized metallurgical engineering. Regions such as Hebei, Jiangsu, and Shandong host complete supply chains where high-grade alloy steel, precision gearboxes, hydraulic units, and electrical automation components are sourced within a 50-kilometer radius.
This structural geographic concentration yields significant procurement benefits for international buyers:
When purchasing China roofing panel forming machinery for international deployment, engineering teams must evaluate compliance across several operational dimensions:
Machines must adhere to CE Directives (2006/42/EC Machinery Directive, 2014/35/EU Low Voltage Directive). Power supply setups must be configured for destination voltages (e.g., 480V 60Hz 3-Phase for North America, 380V 50Hz for Middle East/Europe) with UL/CSA listed control cabinets.
Integration of physical interlock guards, dual-channel safety relays, emergency stop circuits, and heavy-duty hydraulic post-cutting blades featuring high-speed cooling heat exchangers to prevent fluid degradation during 24/7 operations.
Guaranteed post-cut length precision within ±1.0mm per 10m sheet; zero paint cracking or zinc flaking on coated coils (AZ150 Galvalume / PVDF coatings) during extreme bend radius forming.
The roll forming industry is experiencing a technological evolution driven by digital manufacturing, smart sensing, and sustainable building materials:
Automated sensors monitor raw coil thickness variations (e.g., coil tolerance fluctuations between 0.45mm and 0.52mm) and dynamically adjust roller gaps via servo actuators to prevent sheet binding or loose profile geometry.
Integrated cloud gateways allow engineering teams in China to perform remote PLC firmware updates, diagnose hydraulic valve sensor faults, and analyze real-time cycle counts for preventive maintenance globally.
Advanced roller station pass designs specifically engineered to form ultra-high yield strength steel (G550 MPa) without structural spring-back or material fracture, reducing building frame dead loads.
Deployment of roofing machinery requires tailored engineering adaptation depending on regional climate conditions and construction methodologies:
Purchasing capital equipment overseas demands reliable long-term technical support. Leading Chinese manufacturers deliver comprehensive lifecycle guarantees to mitigate operational risks:
Turnkey Field Installation & Training: Experienced field dispatch engineers provide on-site foundation layout validation, mechanical alignment, electrical integration, trial commissioning with local raw material coils, and operator safety training to guarantee factory acceptance test (FAT) performance criteria.
In-depth responses from senior roll forming process engineers addressing critical buyer queries.
