Our Manufactured Fiber Cement Corrugated Roof Sheets Production Line Has Deeply Developed And Widely Used For More Than 30 Years. From Hatchek And Pressed Type Corrugated Sheets Line To Current Vacuum Hatchek Forming Sheets Line Has Upgraded By 9 Times Innovation.
Fiber Cement Corrugated Roof Sheets Have Obvious Features Of Big Covering Area, Fireproof, Humidity Resistant, Corrosion Resistant, Heat Resistant, Light Weight Etc, And Producing Process Is Simple. Cost Low, Widely Used As Roof Sheets In Kinds Of Industrial Factories, Farming Area, Commercial Building, Residential House, Warehouse, And Temporary Buildings Etc.
Cement Corrugated Roof Sheets Take Cement, Asbestos Fiber, Glass Fiber, Kraft Paper Pulp, PVA Fiber Etc As Main Raw Materials, Adding Stone Powder Or Fly Ash. After Raw Materials Slurry Mixing Process, With Hatcheck Type Forming Sheets Line To Form Sheets. After Corrugator Corrugated To Make Final Corrugated Sheets.

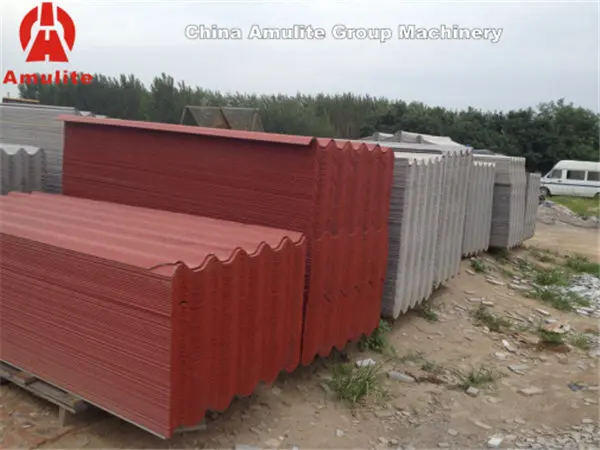

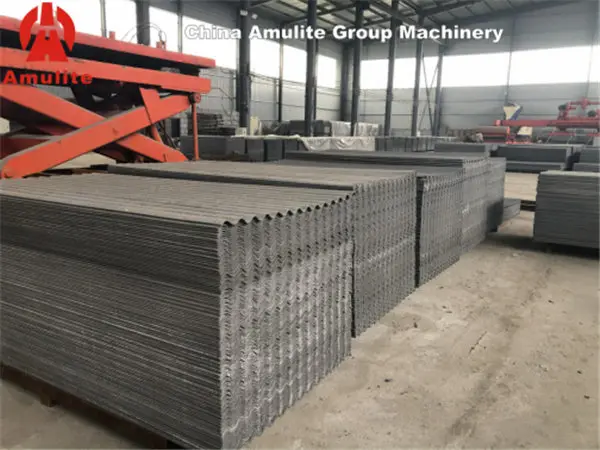

From Wave Difference, Normally We Make Three Types Of Wave Roof Sheets: Big Wave Sheets, Middle Wave Sheets, And Small Wave Sheets. For Different Countries Market, There Are Different For Waves Specification, We Can Customize Different Size Corrugated Sheets Machines According To Customer's Market Request.

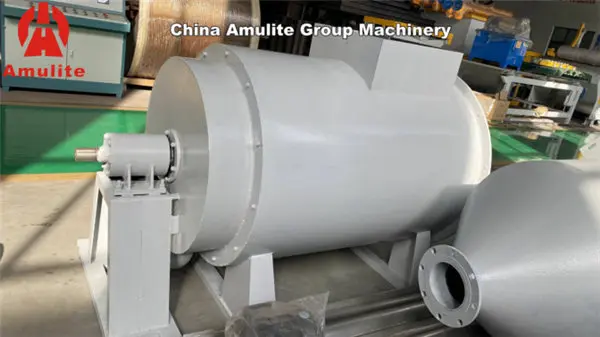

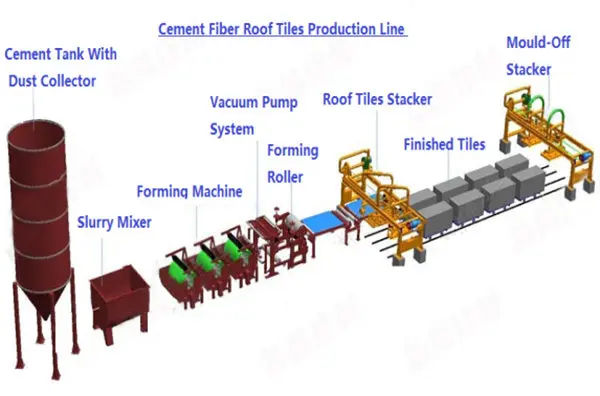

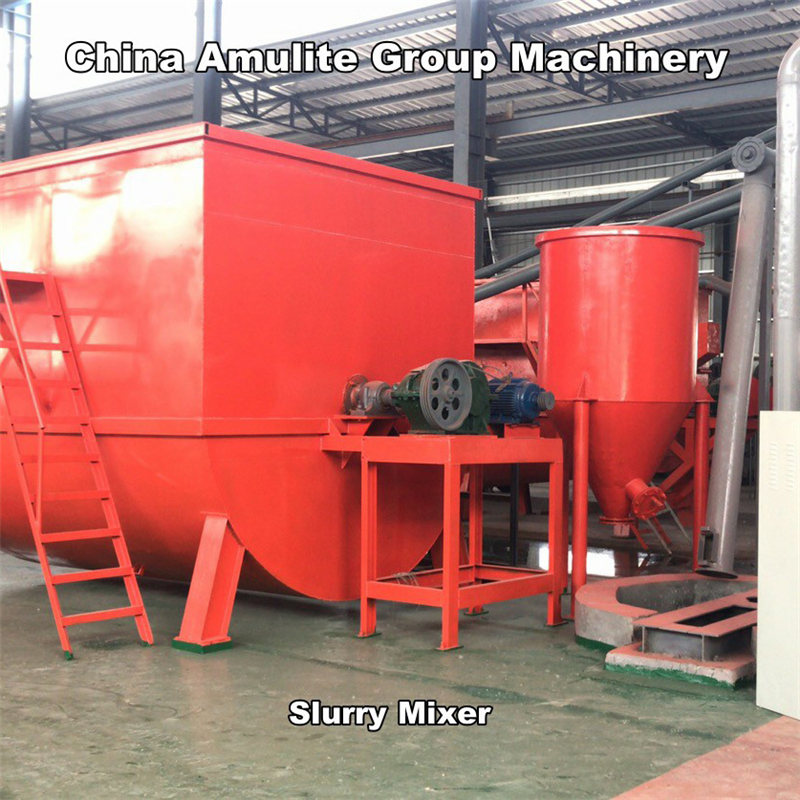

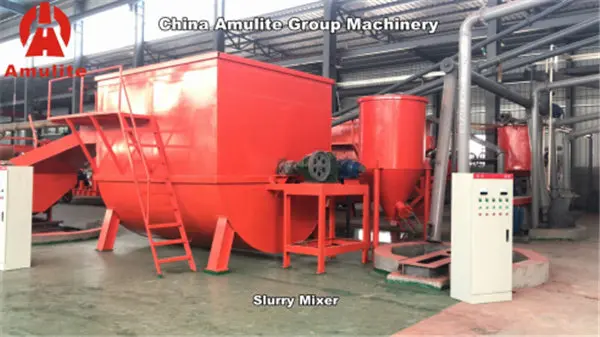

Cement, Asbestos, Glass Fiber And Other Raw Materials Are Made Into Slurry By Impeller Mixing And Sent To The Sheet Forming Process Through Pipeline.

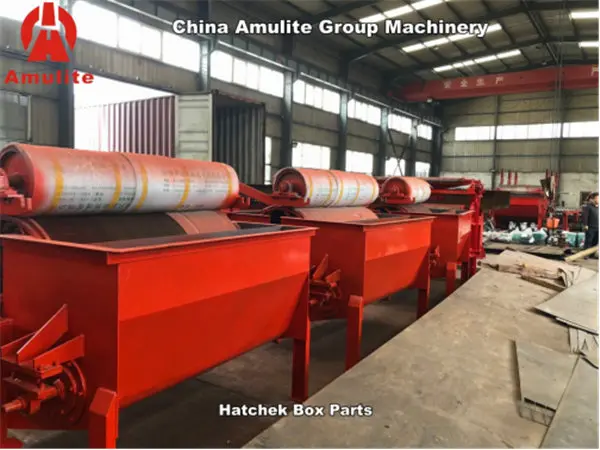

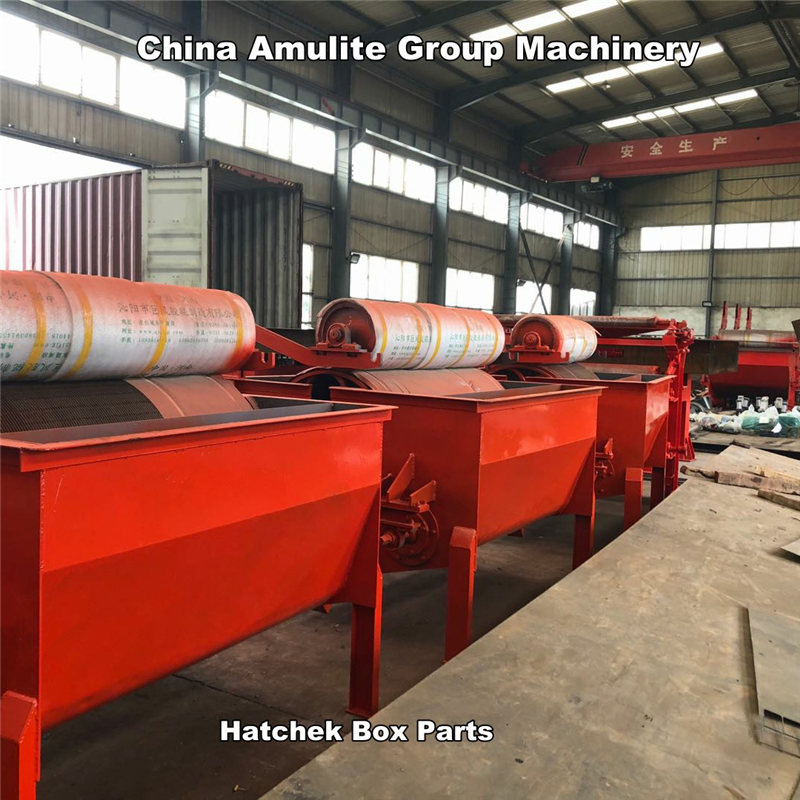

The Moisture Of Cement Asbestos Slurry Is Discharged By Gauze Screen Isolation Method, And The Remaining Material Is Pressed Into Fiber Cement Layer By Rubber Roller.
Fiber Cement Slurry Layer Excess Water Is Dehydration Through Vacuum Sieve Plate, Felt Beater Will Clean Off The Dirty On The Felt, Which Can Guarantee The Felt Running In Uniform Speed.

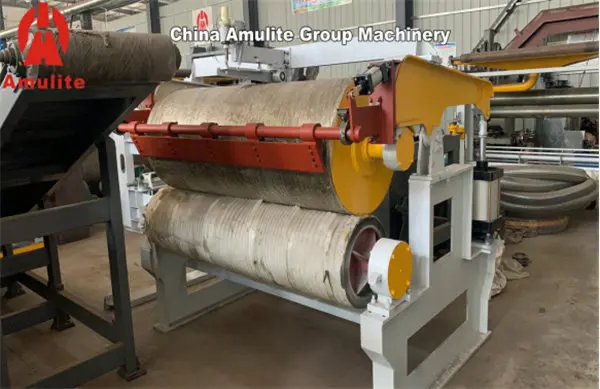

Under The Pressure Of The Forming Cylinder And Rubber Roller, The Dehydration Cement Asbestos Layer Is Evenly Rolled Around Forming Roller Machine, And At The Required Thickness Will Be Cut By The Cutting Steel Wire Automatically.

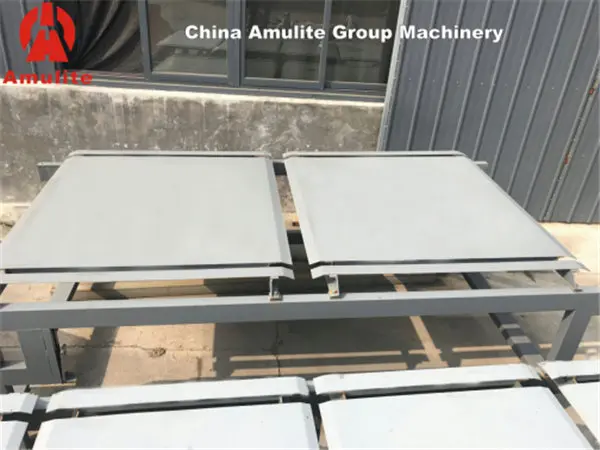

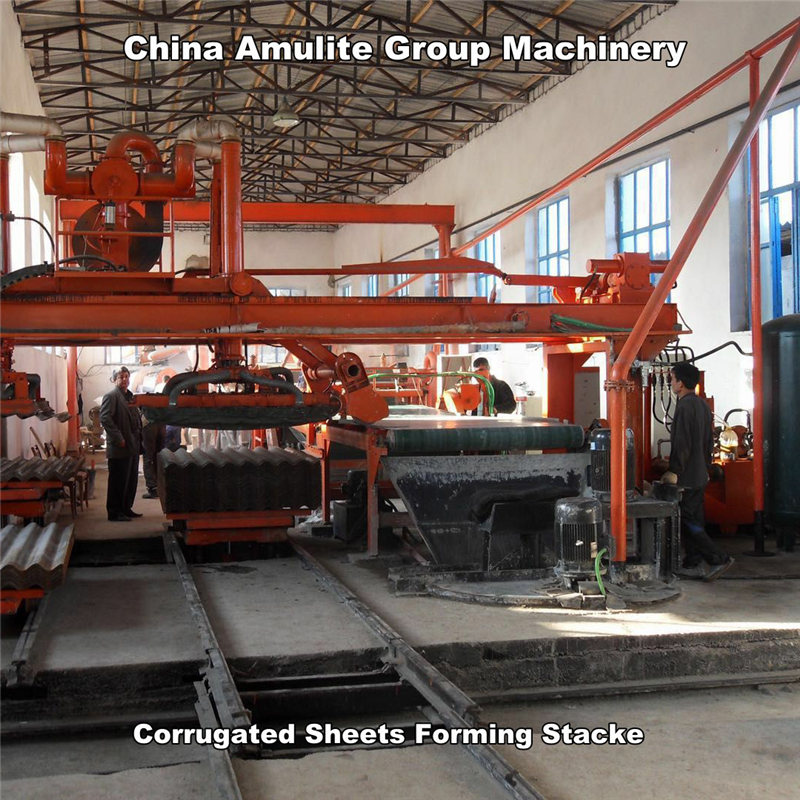

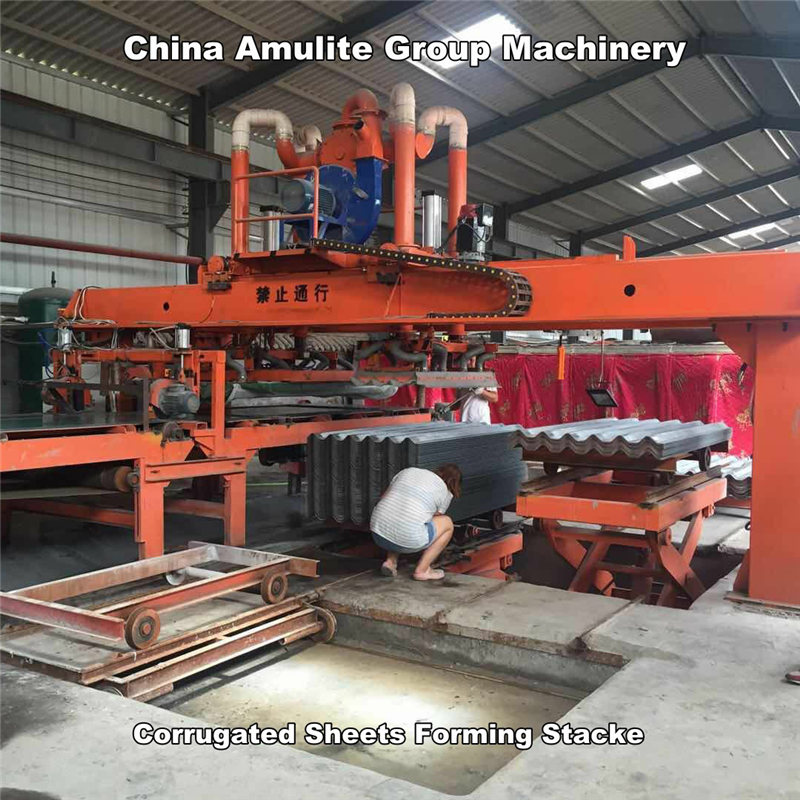

After Forming Sheets From Forming Cylinder, Fiber Cement Wet Sheets Are Conveying To Vacuum Forming Machine Through Receiving Conveyor, After Sizing And Cutting, Vacuum Forming Finish One Time, And Separate Stacking For Corrugated Sheet And Corrugated Template.

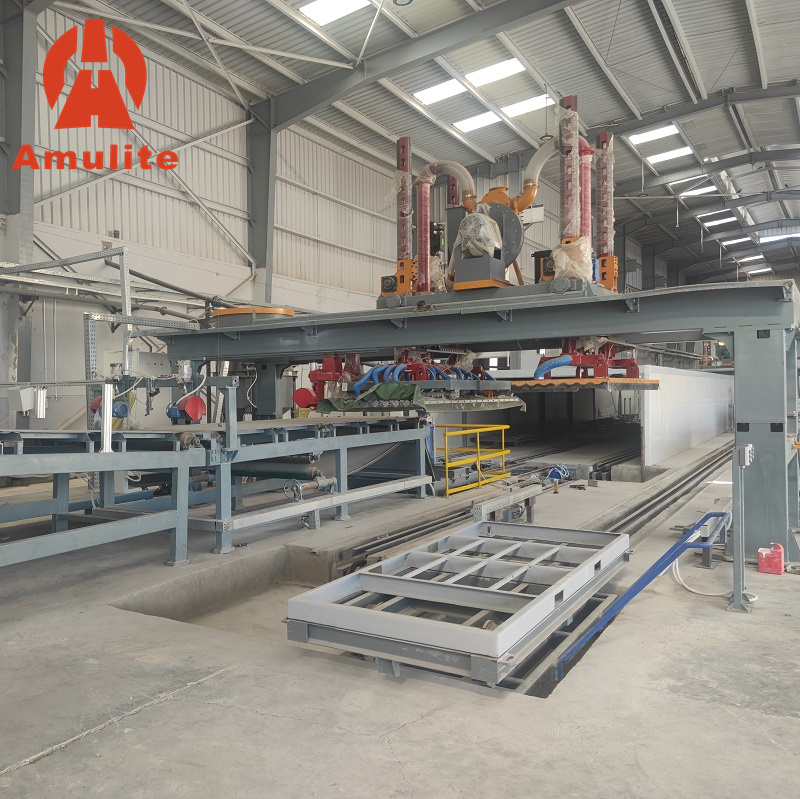

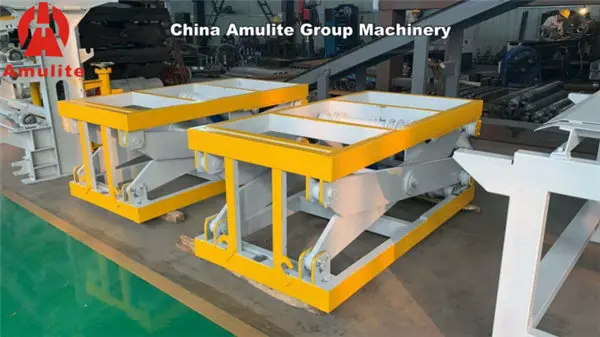

Matching With Stacker By Fully Automatic Control Modes (Separate Action, Linkage, Lifting Up And Down, Positioning), It Has The Characteristics Of Stable And Accurate Lifting, Accurate Positioning, Big Loads Etc.
Shredder And Refine The Wastage Paper Into Paper Pulp, Take As Raw Materials To Add For Corrugated Roof Sheet Production.
We offer standard daily capacity options of 10,000 Sq.m, 15,000 Sq.m, and 20,000 Sq.m. Custom production capacity can also be designed according to customer requests.
The main raw materials include cement, asbestos fiber, glass fiber, kraft paper pulp, PVA fiber, and supplementary materials like stone powder or fly ash.
Normally, three types of wave profiles can be manufactured: Big Wave Sheets, Middle Wave Sheets, and Small Wave Sheets. Machine specifications can be customized for regional market requirements.
Key features include a large covering area, fireproof performance, humidity and corrosion resistance, heat resistance, light weight, low production cost, and simple manufacturing processes.
They are widely used as roofing materials in industrial factories, farming facilities, commercial buildings, residential houses, warehouses, and temporary structures.
Over 30 years of development, the technology upgraded through 9 innovations—transitioning from traditional Hatchek and pressed lines to the current high-efficiency Vacuum Hatchek forming sheet line.
