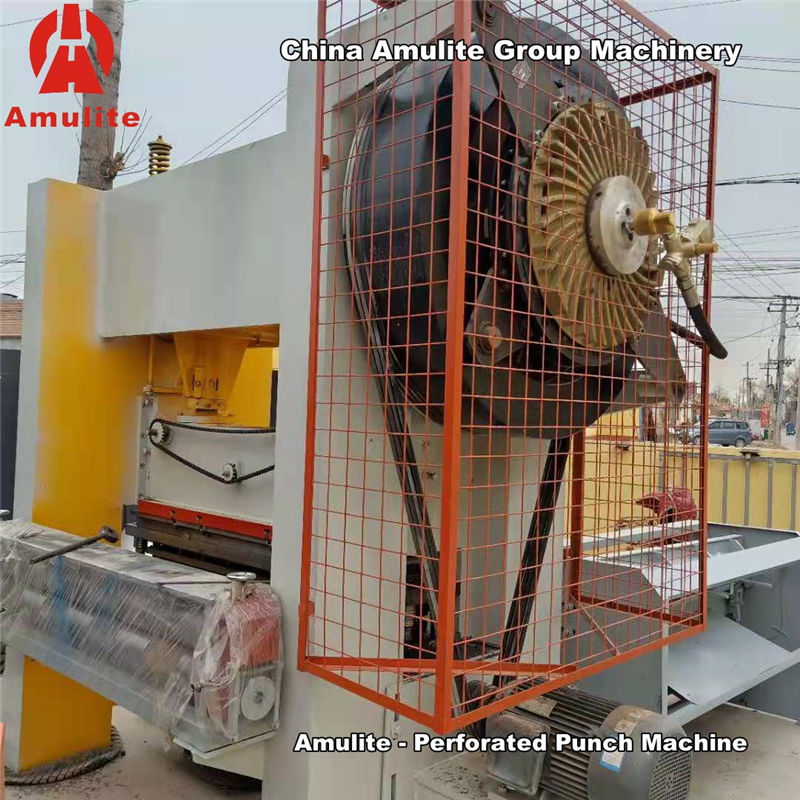

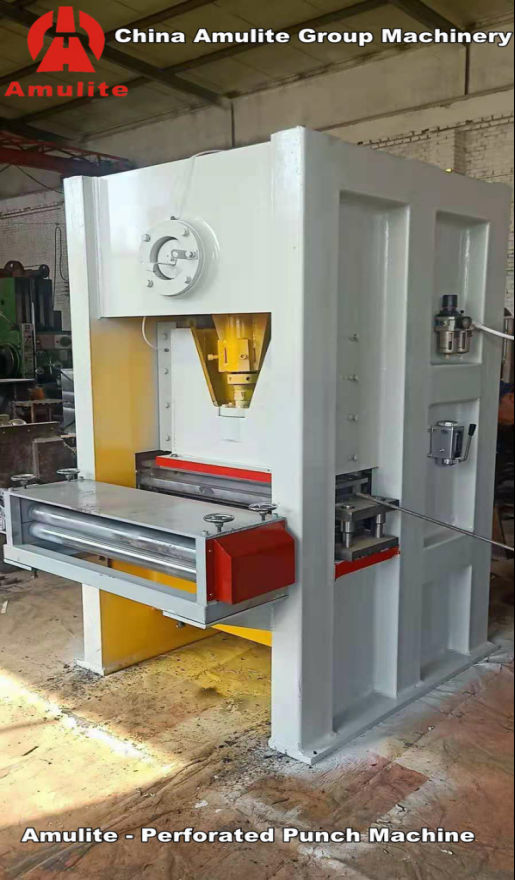

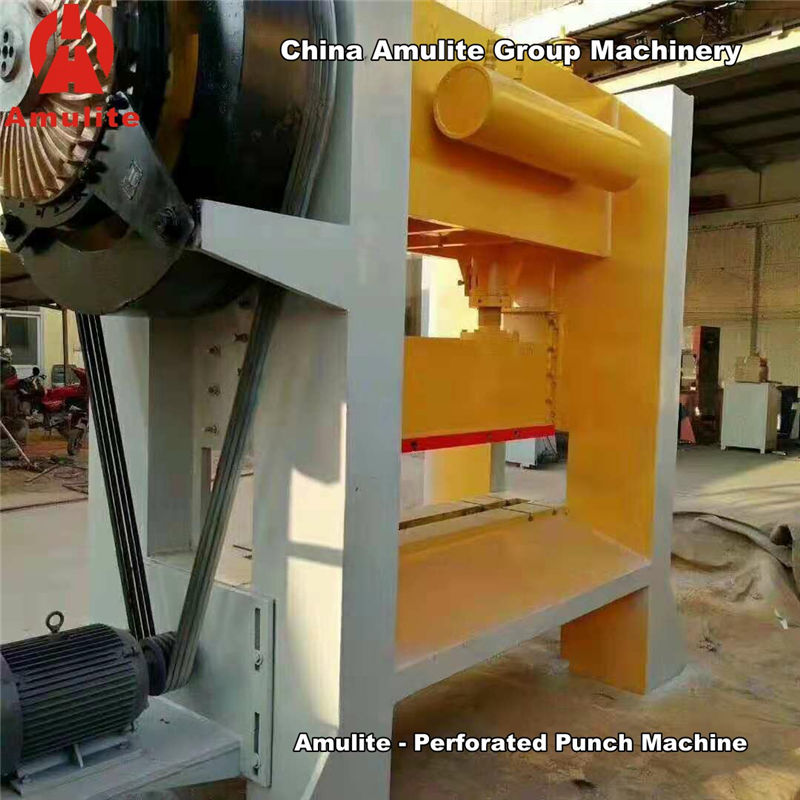

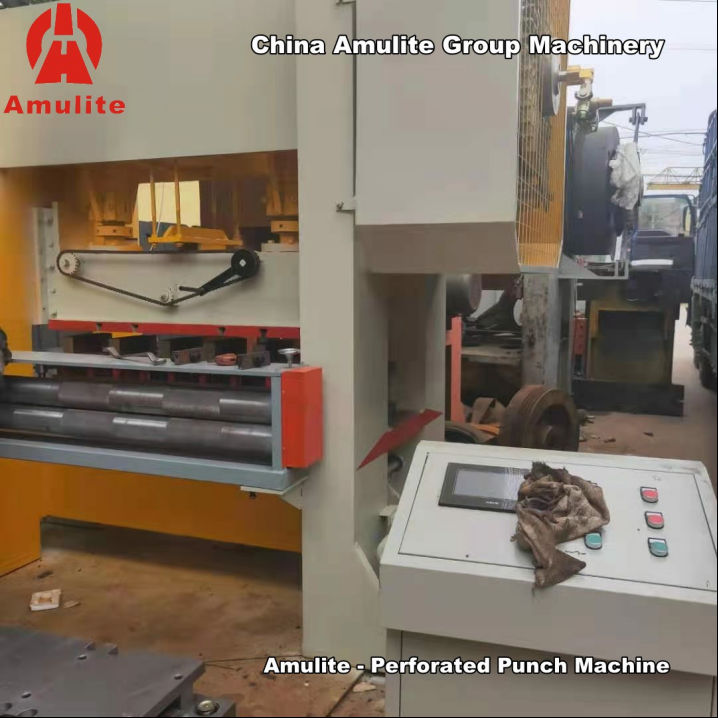

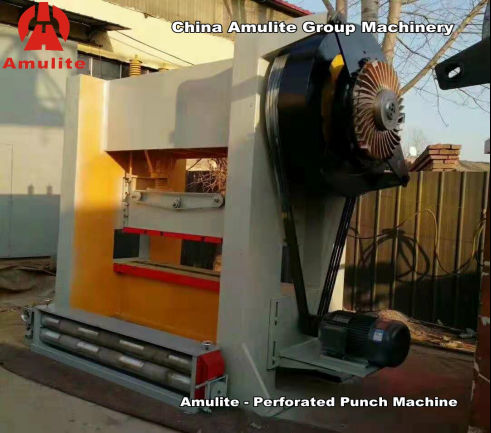

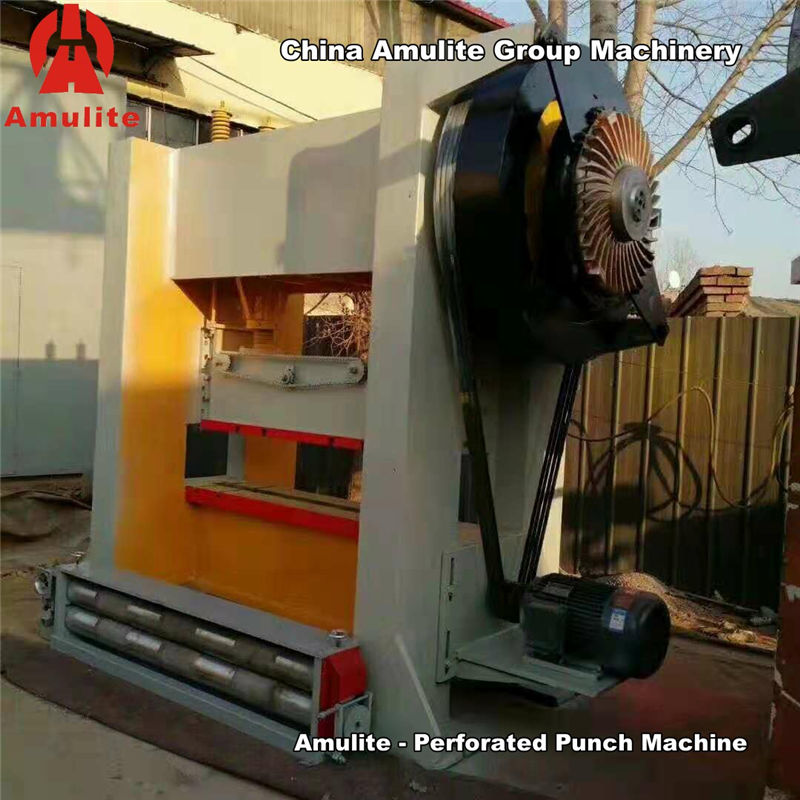

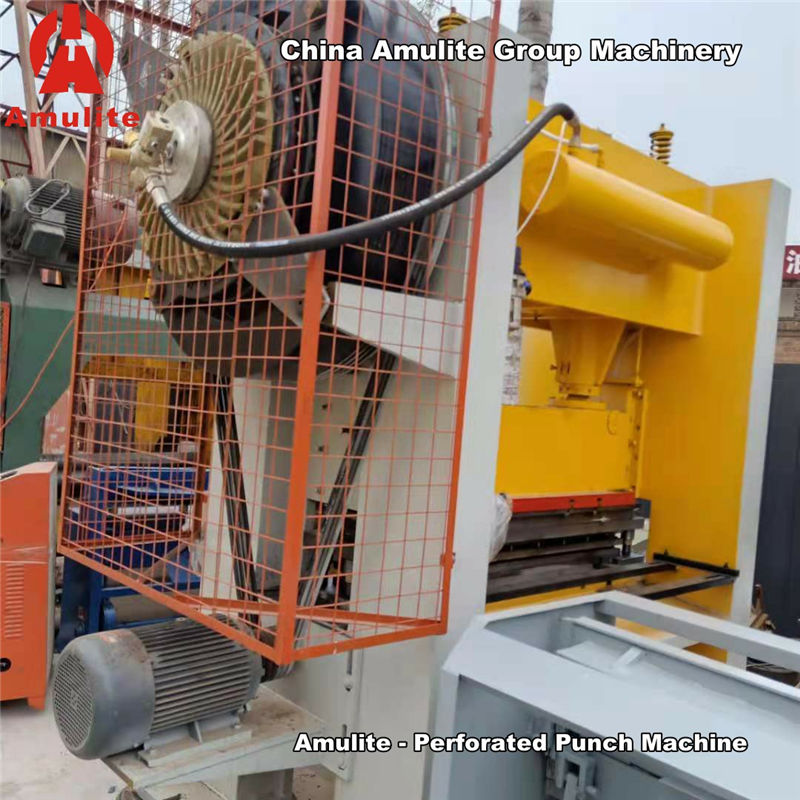

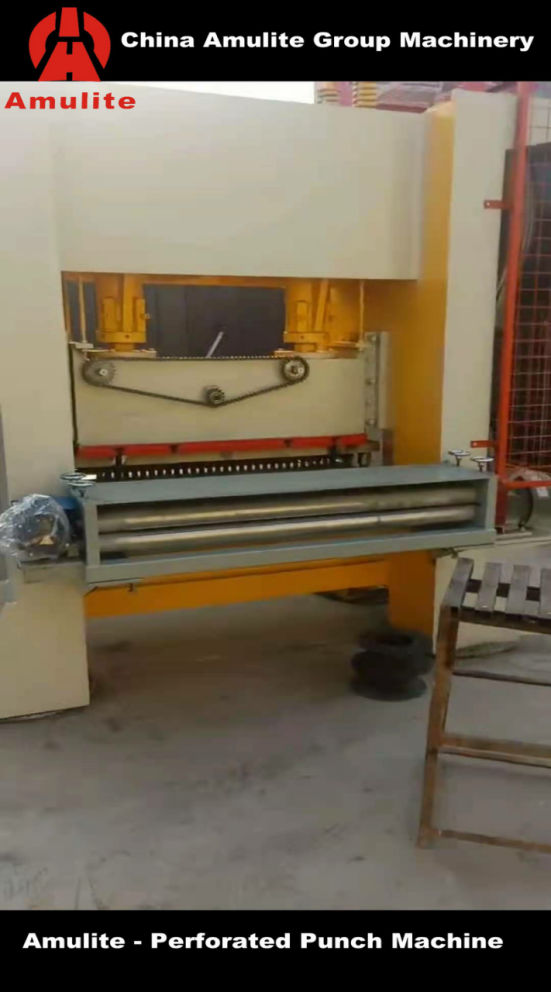

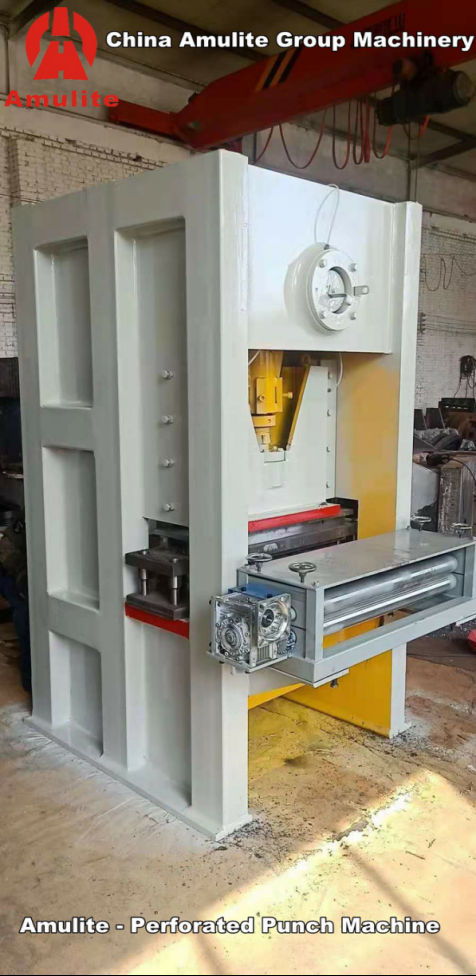

Amulite Perforated Punch Machine is designed to produce perforated punch panels, widely used to punch Fiber Cement Board, Calcium Silicate Board, Gypsum Board, Metal Sheets, Wooden Panels, MDF Panels, and many other kinds of products.
System Flow: Automatic Loading → Servo Conveyor → Automatic Punching → Automatic Unloading & Stacking System
Saves labor power and reduces breakage percentage caused by manual handling. High-efficiency design with precise loading and positioning.
Driven by servo motor for flexible adjustment and precise control. Guarantees smooth panel movement without collisions.

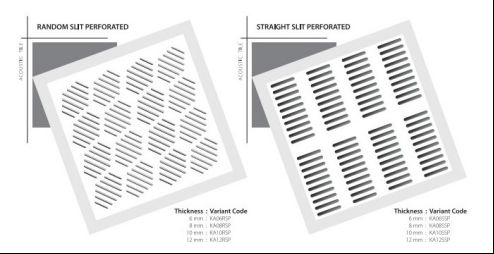

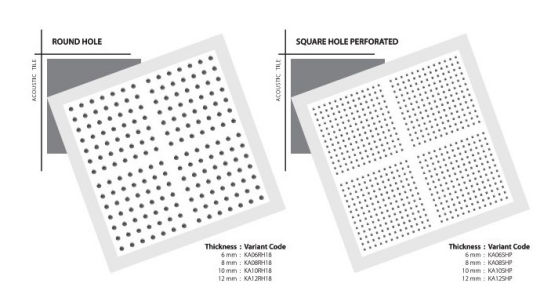

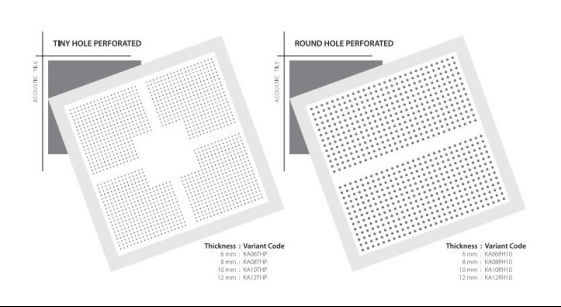

Amulite custom design satisfies all design requirements (round, square, rectangle, etc.). 200Tons pressure punching system ensures high precision, smooth face, and no damage to panels.
Enables automatic unloading and tidy stacking with laser positioning, saving labor and increasing working efficiency.
1): For 1.2M × 2.4M Size Sheet Punch
| No | Item | Specification | Unit | Weight | Power |
|---|---|---|---|---|---|
| 1 | Main Punch Machine | 200Tons Pressure Width 1.3M |
Set | 15Tons | 22KW |
| 2 | Servo Conveyor | 1.3M | Set | ||

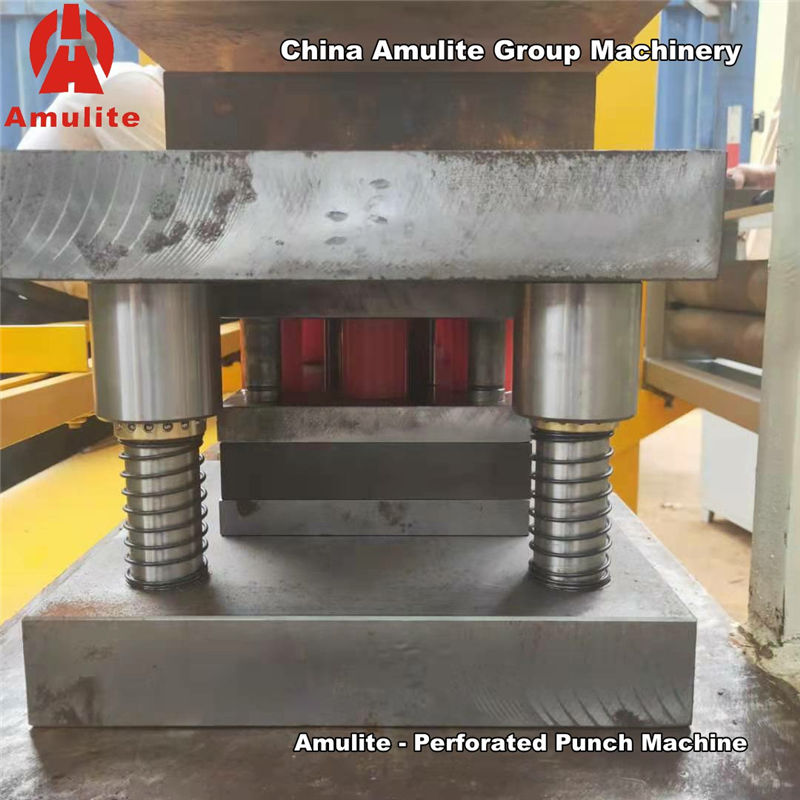

| 3 | Punch Mould | 1.3M Width Round Hole |
Set | ||
| 4 | Automatic Loading | 1.2 × 2.4M | Set | ||
| 5 | Automatic Stacker | 1.2 × 2.4M | Set |
2): For 0.6M × 1.2M & 0.6M × 0.6M Size Sheet Punch
| No | Item | Specification | Unit | Weight | Power |
|---|---|---|---|---|---|
| 1 | Main Punch Machine | 200Tons Pressure Width 0.7M |
Set | 7Tons | 11KW |
| 2 | Servo Conveyor | 0.7M | Set | ||
| 3 | Punch Mould | 0.7M Width Round Hole |
Set | ||
| 4 | Automatic Loading | 0.6 × 1.2M | Set | ||
| 5 | Automatic Stacker | 0.6 × 1.2M | Set |
