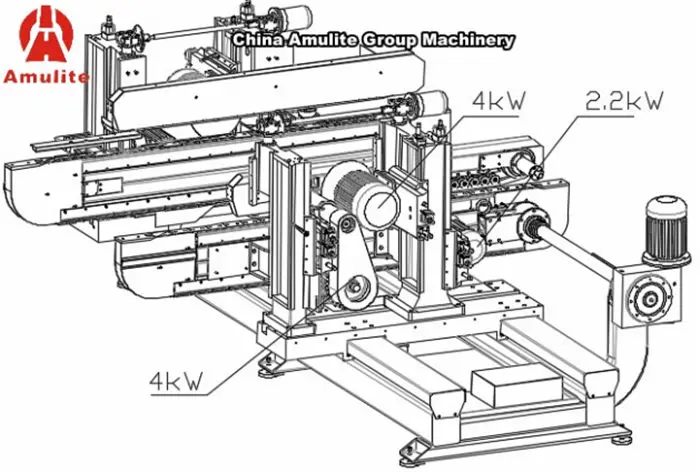

1. Left And Right Slotting Saw: 2×2.2Kw
2. Left And Right Slotting Saw Cutting Saw: 2×4Kw
3. Horizontal Milling Cutter：4kW （Fixed End）
4. Adjustable Width And Narrow Motor Power：0.18KW
5. Pressing Material With Electric Lift：2×0.18Kw
6. Frequency Conversion Feeding，Motor Power 3KW，Feeding Speed 3-18m/min
7. PLC+ Touch Screen Control
9. All Cutter Shafts Can Adjust The Angle And Move Forward, Backward, Up And Down Manually
10. Panasonic PLC+ Winon Touch Screen
12. Size Length×Width×Height 2600 mm×2350 mm×1950mm
Frequently Asked Questions (FAQ)
What is the feeding speed of the Double-sided Panel Sizing Machine?
The machine features frequency conversion feeding with a motor power of 3KW, offering an adjustable feeding speed ranging from 3 to 18 m/min.
What control system is used in the panel sizing machine?
The equipment is built with a Panasonic PLC combined with a Winon Touch Screen control system, along with reliable Schneider Electric components.
What are the overall dimensions of the Double-sided Panel Sizing Machine?
The overall dimensions (Length × Width × Height) of the machine are 2600 mm × 2350 mm × 1950 mm.
Can cutter shafts be adjusted manually?
Yes, all cutter shafts allow manual angle adjustment and can be moved forward, backward, up, and down manually.

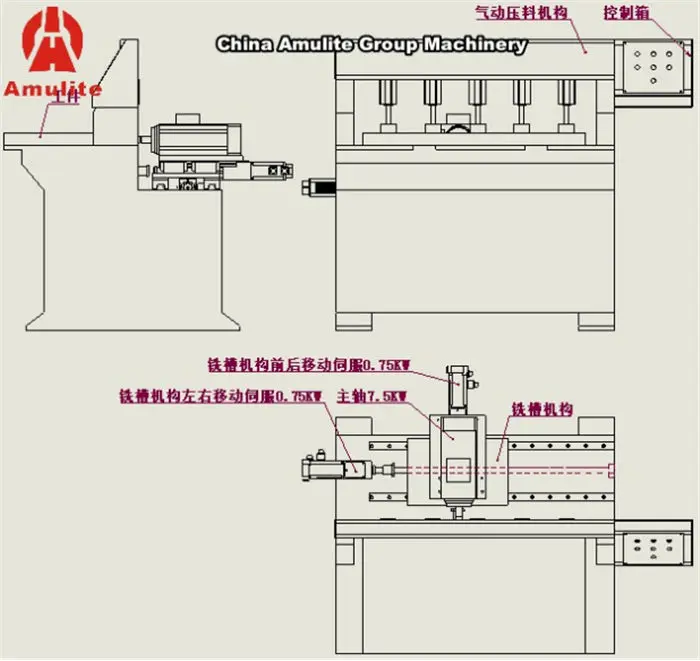

What is the spindle motor power of the AMJ20 Groove Milling Machine?
The spindle motor power for the AMJ20 Groove Milling Machine is 7.5Kw.
What is the knife length specified for the AMJ20 Groove Milling Machine?
The knife length for the AMJ20 Groove Milling Machine is 100 mm.
