OEM 1300 II Type Automatic Four Side Edge Cutting Machine Factory, Companies
This machine is designed by our company specially for gypsum board, wood fiber board, MGO board, Calcium Silicate Board edge cutting treatment ;For the edge cutting size ,length can be adjusted from 1830MM To 2440MM, width can be adjusted from 900MM To 1220MM,the length and width can be adjusted by setting.
This machine is specially designed by our company for Gypsum Board, Wood Fiber Board, MGO Board, and Calcium Silicate Board edge cutting treatment. For edge cutting size, length can be adjusted from 1830mm to 2440mm, and width can be adjusted from 900mm to 1220mm by simple parameter setting. Features a maximum cutting thickness of 50mm, running stable with fast cutting speed and high precision. The entire cutting operation is fully automatic and controlled by one button via air cylinder pressure for easy operation.

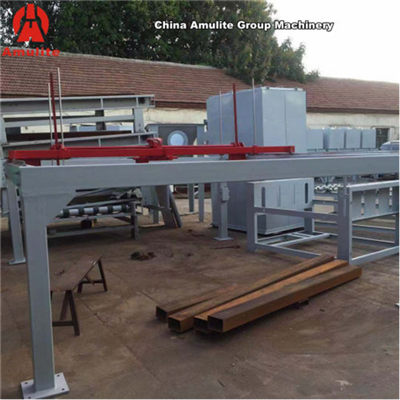

Automatic Loading System:
Equipped with a Vacuum Cup Loading Equipment setup, including a Vacuum Tank, Hydraulic Lift Platform, and Vacuum Pump.
3

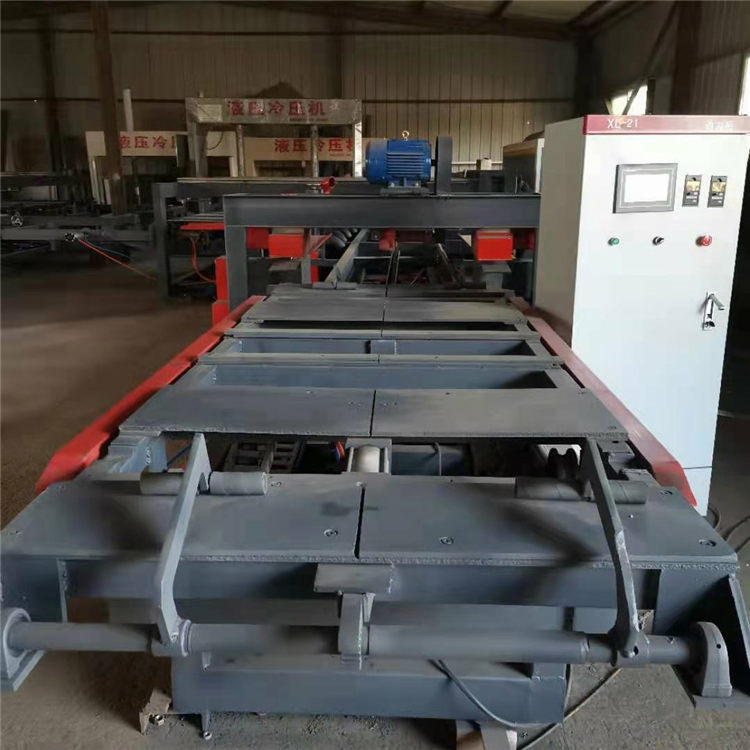

PLC Centralized Control:
All operations across the automatic four-side cutting system are controlled via a high-performance PLC system. Fully automated loading, cutting, and stacking save labor costs while significantly boosting working efficiency.
4

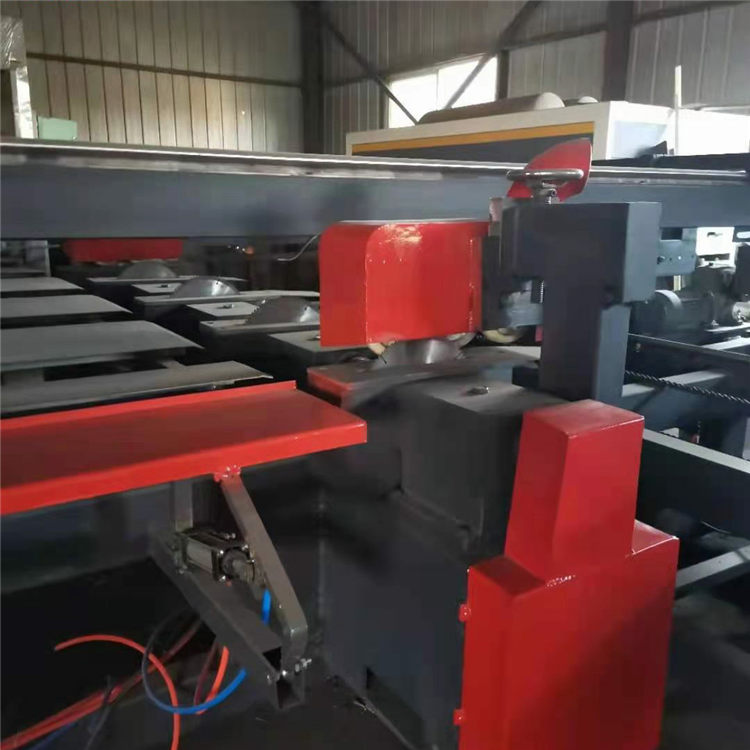

Infrared Laser Positioning:
The automatic cutting saw is monitored by precision infrared technology to ensure exact cutting accuracy, eliminate material wastage, and produce a smoother, higher-quality surface finish.
5

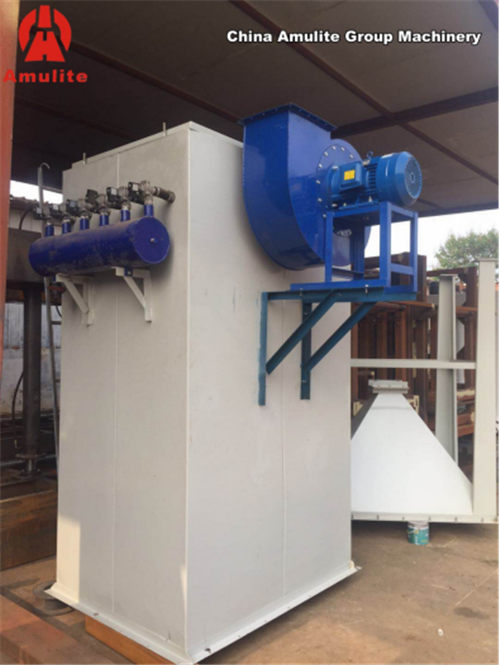

Impulse Type Dust Collector:
Integrated dust collection bag captures processing dust in real-time during operation. This minimizes environmental dust pollution while allowing collected materials to be recycled back into production, saving overall costs.
Q1: Which board materials can this cutting machine process?
This four-side edge cutting machine is specifically engineered to treat edges of Gypsum Board, Wood Fiber Board, MGO (Magnesium Oxide) Board, and Calcium Silicate Board.
Q2: What are the adjustable dimension ranges and maximum cutting thickness?
The machine allows length adjustments from 1830mm to 2440mm and width adjustments from 900mm to 1220mm. It can handle board cutting up to a maximum thickness of 50mm.
Q3: How does the machine ensure precision during high-speed cutting?
Precision is maintained through an integrated Infrared Laser Positioning Monitor combined with PLC automated control, which eliminates cutting inaccuracies and material wastage while delivering a smooth finish.
Q4: Is the operation labor-intensive?
No. The entire process—including loading, cutting, and stacking—is fully automated via PLC control and air cylinder pressure. The unit can be comfortably operated with single-button control, saving labor costs.
Q5: How does the integrated dust collection system work?
The machine includes an Impulse Type Dust Collector with a 4kw fan, 48 dust bags, impulse valves, and flap valves. It captures waste dust during operation to minimize pollution and enables recycling of dust directly back into production.
